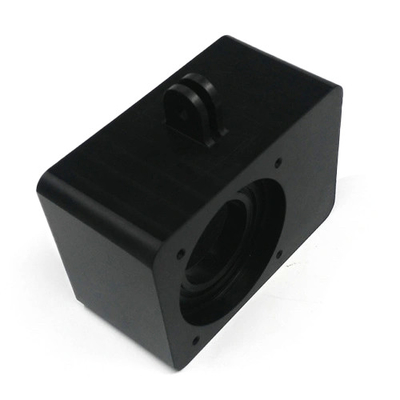

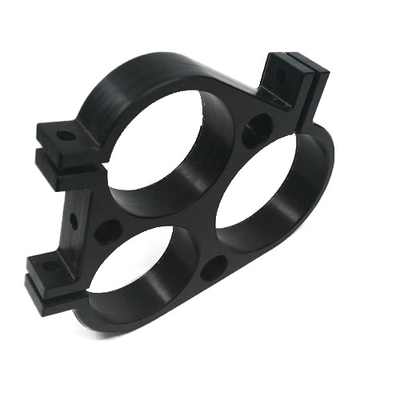

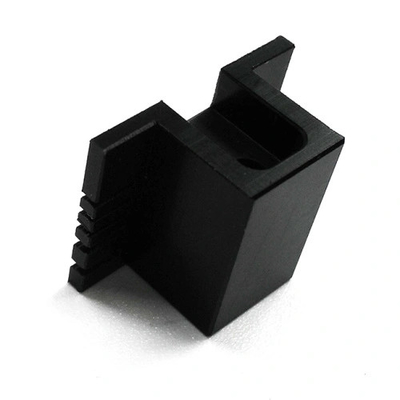

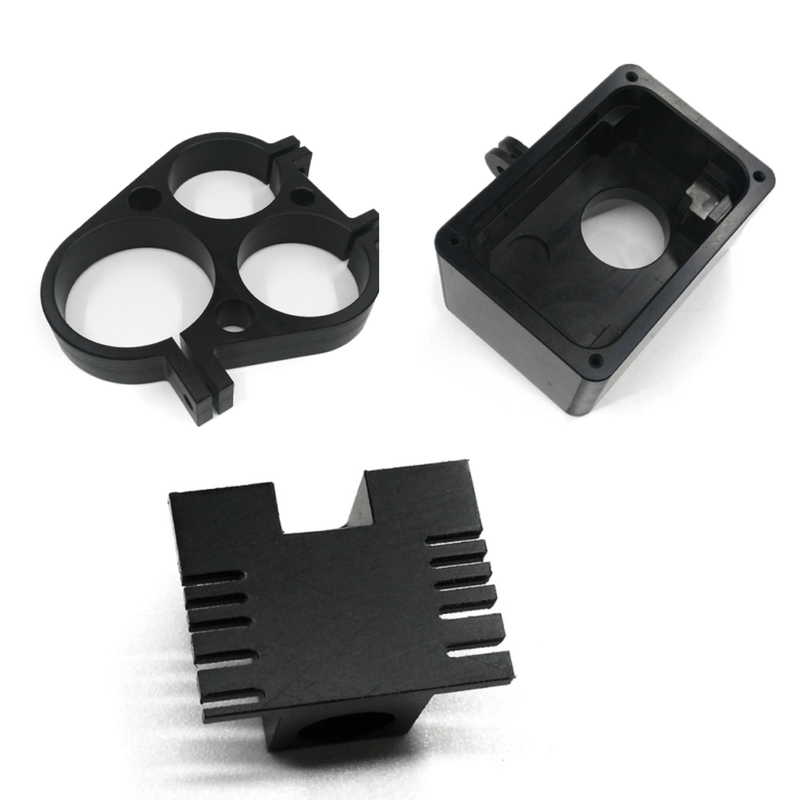

Delrin performs exceptionally well in CNC milling due to its high mechanical strength, low coefficient of friction and excellent dimensional stability. High-precision processing can be achieved by using sharp carbide tools and maintaining an appropriate cutting speed and feed rate. During the processing, attention should be paid to temperature control to avoid deformation of the CNC machining delrin parts due to overheating of the material.The adoption of gentle clamping methods and effective chip removal measures can further improve the processing quality.
►Key points of CNC milling process
Single-edge or single-helical milling cutters: High chip removal efficiency, reduced heat accumulation, and prevention of melt adhesive sticking to the cutter
High-speed steel (HSS) or coated cemented carbide are both acceptable; Choosing the latter can lead to a longer lifespan and a finer surface.
Small relief Angle (< 5°), large rake Angle (10-15°), which is conducive to cutting in and chip removal in CNC machining.
►Machining parameter
parameters
|
Suggested scops
|
explain |
| cutting speed |
2,500–3,500 SFM (760–1,070 m/min)
|
A smooth surface can be achieved at a higher speed. Pay attention to temperature control |
|
load
|
0.005–0.015 inch/tooth (0.13–0.38 mm/z)
|
Keep the chips continuous and avoid overloading or burrs |
|
Axial
|
0.1–0.3 inch (2.5–7.5 mm)
|
Adjust according to the tool diameter and the rigidity of the machine tool |
|
Radial
|
0.5-1× Tool diameter |
The radius of cutting depth can ensure smooth cutting |
►Machining Materials
| Machining Processes |
- CNC Milling CNC Turning
- CNC Milling
- CAM Programming Sheet Metal Fabrication
- Grinding
- Cutting
- Thread Turning / /Milling threading
- Tapping
- Drilling
- Knurling
|
| Machining Material |
Machining Plastic: |
Delrin (Black, White, Blue, Red, Yellow), Nylon, Neoflon, PTFE, Teflon, Ultem, Torlon, Peek, Acrylic, PMMA, PC, Polycarbonate, PAI, PPS, PA, PVDF, POM, PA, PET, PEI, PE, PVC, PP, ABS, PEP, PS, PSF, PI, PMMI, PABM.
|
|
Machining Metal:
|
Titanium
Aluminum 6061, 6061-T6, 6063, 7075, 2052, 2024, 2017.
Copper, Brass, Bronze, Phosphor Bronze. (C10100, C10200, C11000, C12200, C26000, C27000, C28000, C33000, C220, C510, C630 )
Stainless Steel 303, 304, 316 ( 1.4305, 1.4301 )
Steel Ordinary carbon structural Steel, Quality carbon structural steel, cast steel, Steel(350grade steel Aisi 4340, C45,C35,35SPb62,S690)
|
►Part size:
CNC Milling Parts ( Max ) : Length 1030mm, Width 800mm, Height 750mm.
CNC Turning Parts (Max ): Diamter 680mm, Length 750mm.
The size of the above parts are machined in the workshop.
►Machining ability:
We have advanced numerical control processing equipment. Including CNC Machinig Center, 3 Axis,4 axis. CNC Lathe, Lathe, CNC Turning Centers,Horizontal 8/12-position hydraulic turret Milling Machine, Grinding Machine, Drill Press, Tapping Center, Rotary Indexer, Punch and other core equipment. These devices enable us to process parts with complex geometric shapes efficiently, meeting the high-precision requirements of ±0.01mm. They are widely used in industries with strict precision requirements such as automobiles, electronics, and medical care. Whether it is the tiniest details or the most complex structures, we can present them precisely to ensure the high quality and reliability of the products.
The factory operates strictly in accordance with the standard procedures: order review, drawing confirmation, numerical control programming of products, precision processing, quality inspection, packaging and transportation. Please provide your drawings or requirements, and we will quote for you immediately.
