In the process of equipment design and component selection, the three common problems have always been a challenge for engineers - excessive weight leading to increased energy consumption, heat accumulation affecting stable operation, and metal corrosion shortening the service life. Although traditional steel parts have sufficient strength, they are heavy, have high processing costs, and are often discarded due to insufficient precision or poor corrosion resistance.

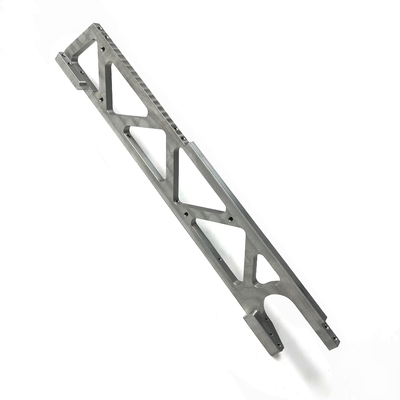

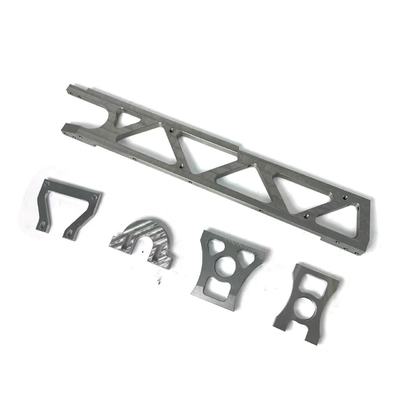

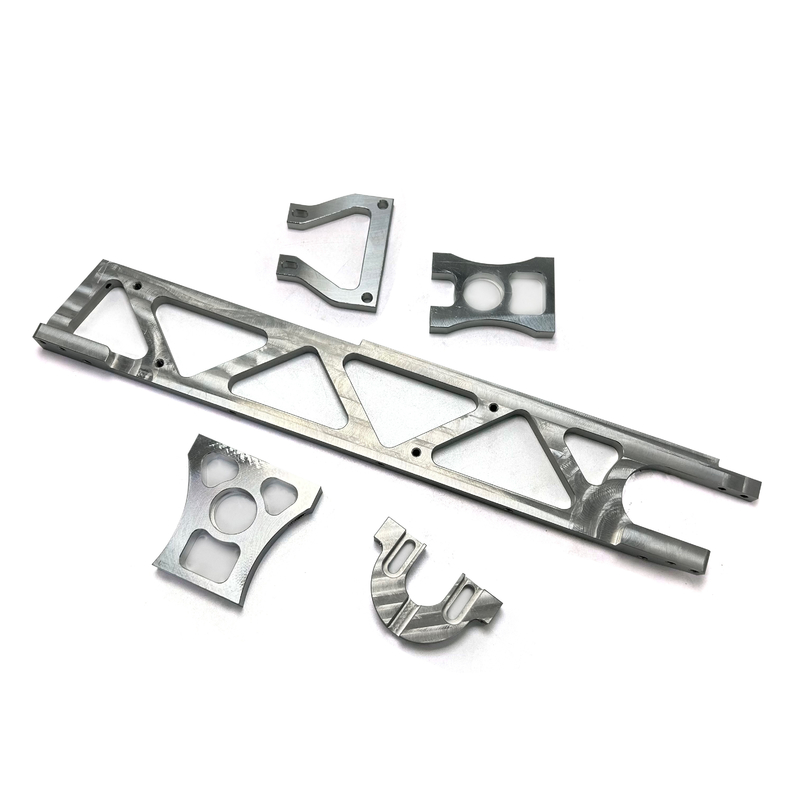

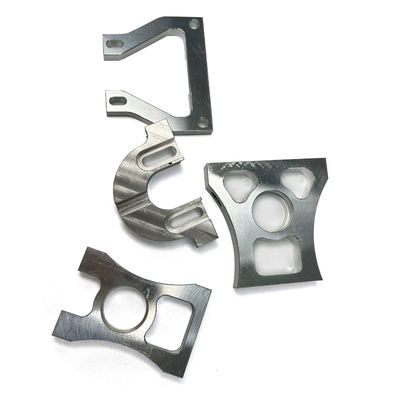

To solve these problems, we provide professional customized component solutions based on high-performance aluminum materials. This product is made of high-quality aluminum materials (such as 6061, 7075, etc.) and undergoes precise CNC machining. It not only achieves lightweight and high strength, but also ensures extremely high dimensional consistency and surface finish.
►Why choose our aluminum parts?
- Light yet strong, significant weight reduction
Structural optimization combined with the low density of aluminum significantly reduces weight, enhancing energy efficiency and performance.
- Excellent heat and electrical conductivity, stable heat dissipation
High thermal conductivity is suitable for applications such as heat sinks and electrical connections, reducing cooling requirements and ensuring system stability.
- High precision processing, customizable
CNC machining accuracy reaches ±0.01mm, rough cutting speed of 900 m/min, fine cutting speed of 1500 m/min, suitable for customizing complex structures.
►Machining Parameter Overview
| Machining Item |
Roughing Range |
Finishing Range |
| Cutting Speed Vc |
300–900 m/min |
800–1500 m/min |
| Feed per Tooth fz |
0.05–0.25 mm/tooth |
0.02–0.10 mm/tooth |
| Cutting Depth ap |
1–6 mm |
0.2–1 mm |
| Cutting Width ae |
10–70% of tool diameter |
5–30% of tool diameter |
►Equipment support
We have a complete set of equipment including three-axis/four-axis CNC machining centers, turning centers, lathes and drilling machines, providing a one-stop service from prototyping to mass production; and we also have a highly rigid tool turret system to ensure efficiency and consistency.
►The quality inspection process is rigorous
Each product undergoes precision detection by a three-coordinate measuring instrument, size inspection, and material verification. Additionally, we can provide a complete quality inspection report according to customer requirements.
The quality inspection process is rigorous.
