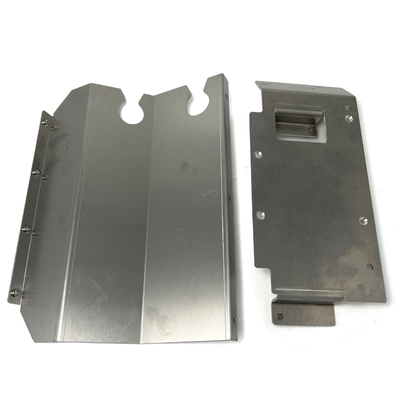

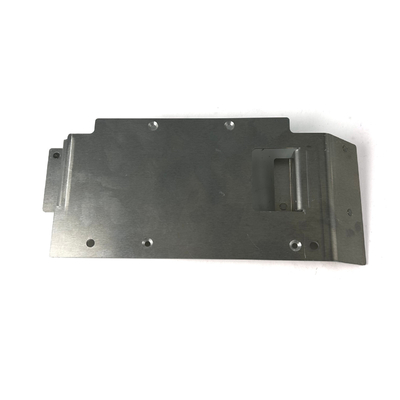

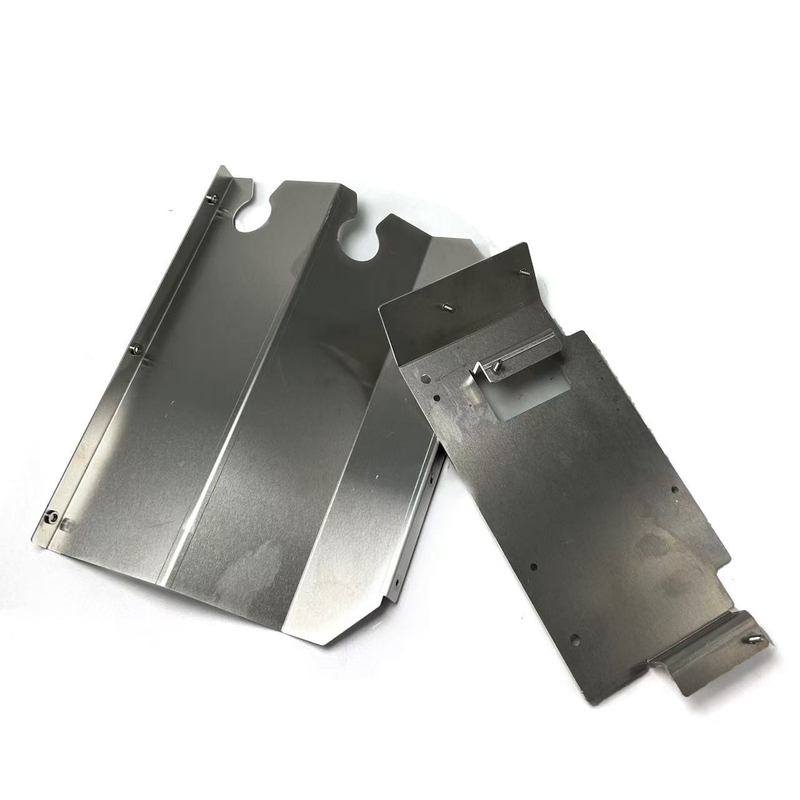

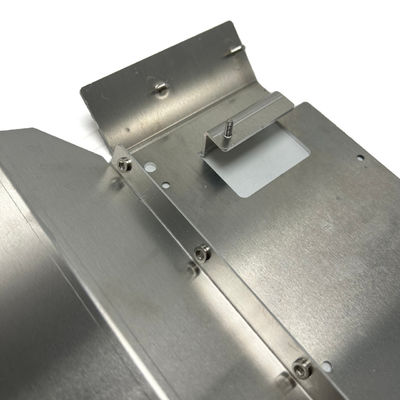

We offer customized processing services for various types of metal sheet metal, and our parts are widely used in mechanical casings, electrical boxes, communication equipment and other fields. Sheet metal materials have excellent strength and ductility, and are suitable for various processing techniques such as stamping, bending and welding. We support a variety of metal material options, are equipped with advanced processing equipment and strict quality inspection procedures, and ensure that every CNC processed sheet metal product meets high standards in terms of dimensional accuracy and performance.
►Sheet metal bending is one of the important processes in sheet metal processing and has the following main characteristics:
- It has strong molding flexibility
Bending can process structures of various angles and shapes, and is suitable for the forming of complex parts.
With the help of CNC bending machines and other CNC processing equipment, high-precision Angle control and dimensional repeatability can be achieved.
It can be applied to various materials (such as stainless steel, aluminum plates, cold-rolled plates, etc.) and sheet metal materials of different thicknesses.
- The cost is relatively low
Compared with mold forming, bending does not require complex molds and is suitable for medium and small batch customized production.
►Common parameters for bending sheet metal parts
| Parameter Name | Definition | Common Reference Values or Empirical Formulas |
|---|
| Bending Radius | The inner radius formed after bending | Carbon steel: r ≈ thickness; Stainless steel: r ≥ 1.5 × thickness |
| Bending Angle | The included angle between two sheet sections after bending | Common angles: 90°, 120°, 135° |
| Material Thickness | Physical thickness of the sheet material | Common: 0.5mm – 6mm |
| V-Groove Width (Die Width) | Width of the lower die opening | V = 6 × thickness ~ 12 × thickness |
| Minimum Bending Edge | The shortest length of the bent edge | Min edge length ≥ 0.7 × V-groove width |
| Bend Allowance | The length compensation for bending deformation in developed dimensions | Calculated using K factor or tables; K is typically 0.3 ~ 0.5 |
| Bending Force | The required force to complete the bending process | Related to material, thickness, bending length, and die type |
►CNC Machining details:
| Machining Processes | CNC Milling , CNC Turning, CAM Programming, Sheet Metal Fabrication, Grinding, Cutting, Thread Turning, Milling Threasing, Tapping, Drilling, Knurling |
| Machining Metal | Titanium, Aluminum, Copper, Brass, Bronze, Stainless Steel, Steel, Delrin, Nylon, Neoflon, PTFE, Teflon, Ultem, Torlon, PEEK, Acrylic, PMMA,PC, Polycarbonate, PAI, PPS, PA, PET, PEI, PE, PVC, PP, ABS, PEP, PS, PSF, PI, PMMI, PABM |
| Parts Size | Milling Parts ( MAX) :Length 1030mm,Width 800mm, Height 750mm.
Turning Parts ( MAX) :Diamter 680mm,Length 750mm. |
| Tolerance | 0.01mm |
| Sample | Samples are for free, sample time is 5 days. |
| Delivery | Delivery time is 3-4 week, depending on the degree of difficulty of machining parts |
| file format | Para-Solid 3D,PDF,IGES, STEP, SOLIDWORKS |
►Machining ability
We have a full range of metalworking equipment, including CNC Machining Centers, 3-axis / 4-axis machining centers, CNC Lathe, CNC Turning Centers and other high-precision CNC equipment, to meet the requirements of efficient cutting of complex structural parts. It is also equipped with auxiliary equipment such as ordinary lathes, milling machines, grinders, drilling machines, tapping centers, indexers, and CNC punching machines, which can cover the entire process from rough machining to precision machining. Some machines are equipped with 8/12 station hydraulic tool turrets, supporting efficient multi-tool position continuous processing, which greatly improves production efficiency and dimensional consistency.
We offer one-stop customized services for sheet metal parts and other metal and plastic parts, covering laser cutting, bending, welding, CNC machining, surface treatment and assembly, and support rapid response based on provided drawings or samples.
