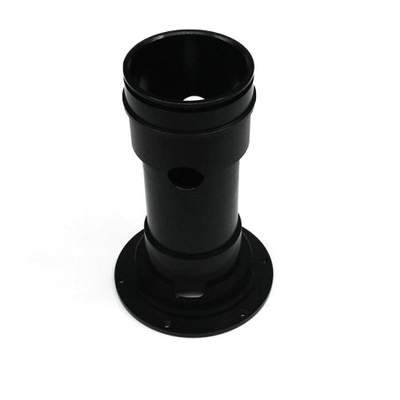

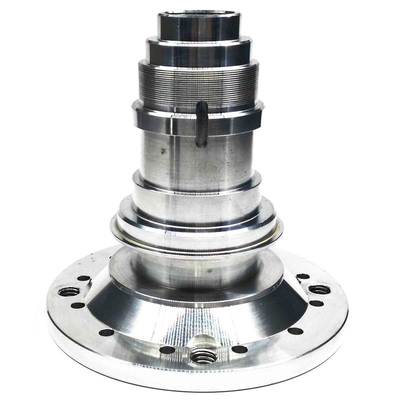

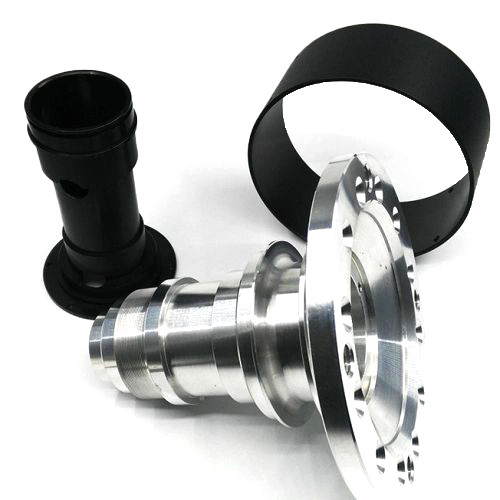

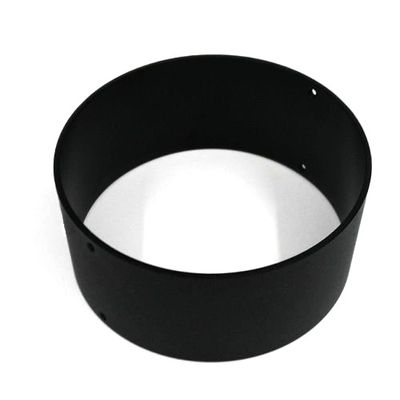

We focus on precision CNC machining aluminum parts, offering excellent strength-to-weight ratio, corrosion resistance, and machinability. Ideal for both structural and decorative applications, our custom-machined components are commonly used in automotive, electronics, and aerospace industries. Parts are produced using multi-axis CNC lathes, ensuring tight tolerances (±0.01mm), smooth finishes, and high repeatability. We support complex features such as threads, undercuts, and curved surfaces. Maximum machining diameter is up to Φ860mm, with wall thickness down to 0.23mm. Custom finishes like anodizing or sandblasting are available upon request.
►Machining parameter
| Parameter Item |
Value Range |
| Machining Diameter Range |
φ5mm – φ860mm |
| Machining Length Range |
Maximum length 1000mm (depends on part structure) |
| Feed Rate |
0.05 – 0.30 mm/rev |
| Spindle Speed |
800 – 3500 rpm (select based on part requirements) |
| Tool Material |
Hard alloy tools; PCD / CBN |
| Surface Roughness |
Ra 0.8 – 3.2 μm (can be controlled according to requirements) |
| Machining Accuracy |
±0.01mm, some parts can reach ±0.005mm |
| Minimum Wall Thickness |
≥0.5mm (depends on structure and material) |
►High-precision processing capability
Our CNC turning centers are equipped with multi-station turret or power tool turret, featuring outstanding processing flexibility and high efficiency. This equipment is suitable for processing parts with various complex geometric structures, including straight, inclined, arc-shaped contours, as well as various types of threads, grooves, worm gears and other structures. The maximum processing diameter of CNC machined parts can reach Φ860mm, and the thinnest single product thickness can reach 0.23mm, meeting the diverse processing requirements from heavy workpieces to ultra-thin precision parts.
We have CNC Machining Center, 3 Axis, 4 axis. CNC Lathe, Lathe CNC Turning Centers,Horizontal 8/12-position hydraulic turret, Milling Machine, Grinding Machine, Drill Press Advanced machining equipment such as Tapping Center, Rotary Indexer and Punch can meet the machining requirements of complex geometry and precision dimensions with an accuracy of ±0.01mm. Whether it is the minute details or the complex structure, we can present them precisely.
►A wide range of material choices
| Aluminum |
6061, 6061-T6, 6063, 7075, 5052, 2024, 2017, 6082 |
| Copper |
Copper, Brass, Bronze |
|
Stainless
Steel
|
SUS303, SUS304,( 57333944, 57327748, 57266856, 57158587, 56720232, 56707289, 56674195, 56664771, 54400552, 54383354, 54153424, 54147929, 54138846, 54131278, 54067234, 54065431, 54025957,1.4301), SUS316 |
| Steel |
Q235, 45#, A3, 718H, S136, SKD11 |
| Titanium |
/ |
| Plastic |
Delrin, Nylon, Neoflon, PTFE, Teflon, Ultem, Torlon, Peek, PMMA, PC, PAI, PPS, PA, PVDF, POM, PA, PET, PEI |
►Secondary processing services
- Plating Zinc Color (Machining Steel Parts),
- Anodize Color, Hard Anodize, Hard Anodize
- Electroless Nicke (Machining Aluminum Parts,Machining Stainless Steel Parts,Machining Brass Parts ),
- Passivation (Machining Stainless Steel parts )
- Sand Blasting (Machining Aluminum parts )
- Brushed ( Machining Aluminum parts,Machining Stainless Steel parts ),
- Bluing and Blackening (Machining Steel parts),
- Trivalent Chromium Process(Machining Aluminum parts)
- Welding, brazing, soldering,Centerless Grinding and Burnishing
CNC machining can import your Para-Solid 3D image files, PDFS and IGES, STEP or SOLIDWORKS files. Please send your 3d image file and PDF and we will quote for it.
