This is large size CNC machining aluminum parts customized by us for our customers.Anodizing is a surface treatment process that generates a dense oxide film on the surface of CNC Machining Alumina Parts through the principle of electrolysis. Mainly used for aluminum and aluminum alloy materials, through the electrolyte power, so that aluminum parts as the anode to form a uniform oxide layer, improve its corrosion resistance, hardness and surface beauty. The oxide film itself has a microporous structure, which can be dyed to achieve a variety of color effects. Anodizing can also improve coating adhesion, which is one of the important processes to improve the quality of CNC Machining Alumina parts.
In the US military standard MIL-A-8625, anodizing is divided into three types:
|
Type
|
electrolyte
|
thickness of membrane
|
Dyeing or not
|
Application scenarios
|
|
Type I
|
chromic acid
|
0.5–7.6 μm
|
No
|
Aerospace
|
|
Type II
|
vitriol
|
5–25 μm
|
Yes
|
Decorative and light industry
|
|
Type III
|
Sulfuric acid
|
25–150 μm
|
Finite dyeing
|
Military,industrial machinery
|

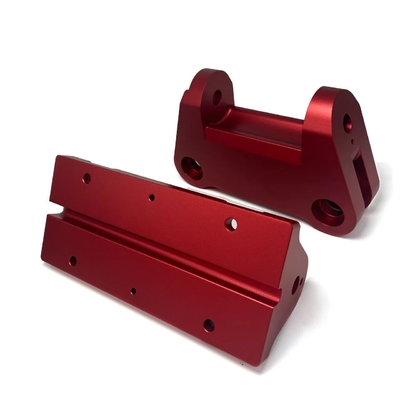

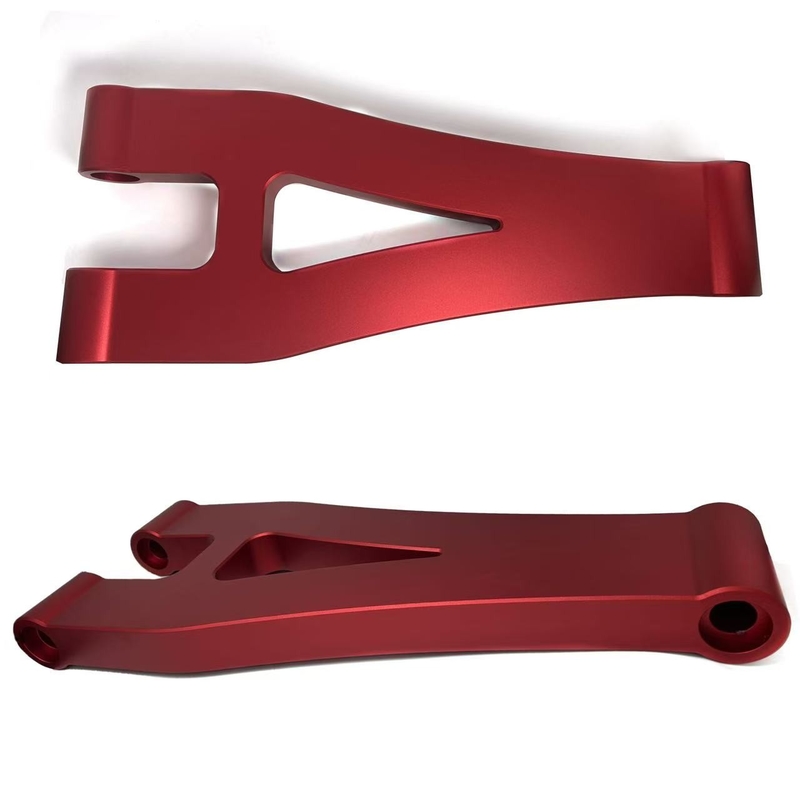

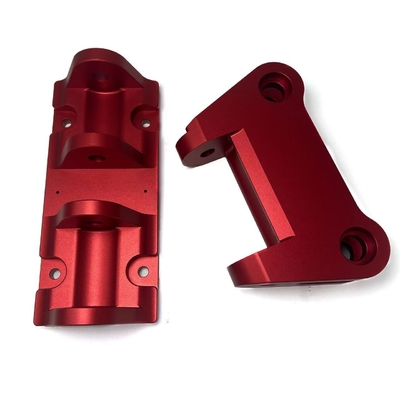

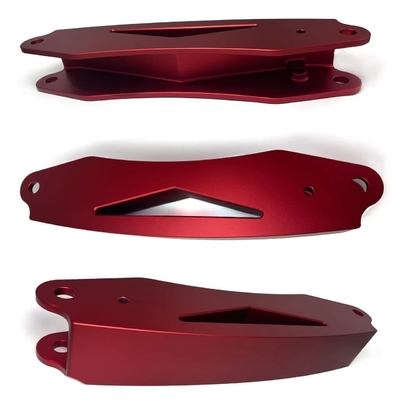

►Here are some of our anodized aluminum parts
►Secondary Services of Machining Parts
Anodize(Type Ⅰ),Anodize Color(Type Ⅱ), Hard Anodize(Type Ⅲ)
Hard Anodize Teflon (Machining Aluminum)
Plating Zinc Color (Machining Steel Parts),
Electroless Nicke (Machining Aluminum Parts,Machining Stainless Steel Parts,Machining Brass Parts ),
Passivation (Machining Stainless Steel parts ),
Sand Blasting (Machining Aluminum parts ),
Brushed ( Machining Aluminum parts,Machining Stainless Steel parts ),
Bluing and Blackening (Machining Steel parts),
Trivalent Chromium Process (Machining Aluminum parts ),
Welding, brazing, soldering,Centerless Grinding and Burnishing
►Machinable material
| Machining Metal |
Aluminum 6061, 6061-T6, 6063, 7075, 5052, 2024, 2017.
Copper, Brass, Bronze, Bronze.(C10100, C10200, C11000, C12200, C26000, C27000, C28000, C33000, C220, C510, C630 )
Stainless Steel 303, 304, 316 ( 1.4305,1.4301 )
Steel Ordinary carbon structural Steel, Quality carbon structural steel, cast steel, Steel(350grade steel Aisi 4340,C45,C35,35SPb62,S690)
Titanium
|
| Machining Plastic |
Delrin ( Black, White, Blue, Red, Yellow) Nylon,Neoflon,PTFE, Teflon,Ultem,Torlon,Peek,PMMA,PC,PAI, PPS, PA, PVDF, POM, PA, PET,PEI . |
►Quality Control
- Measuring Project
- Microscope
- Digital Caliper
- Spiral micrometer
- Altimeter
- Digital height gauge
CNC machining can import your Para-Solid 3D image files, PDFS and IGES, STEP or SOLIDWORKS files. Please send your 3d image file and PDF and we will quote on it.
